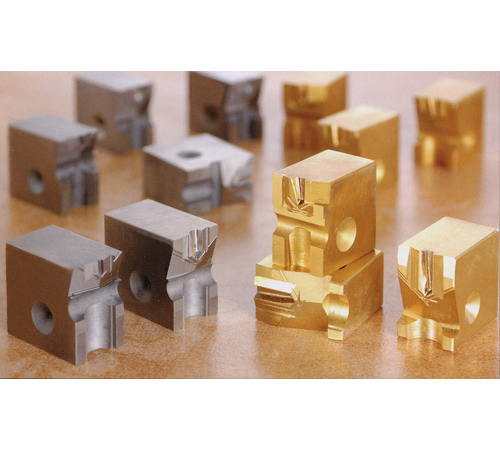

材質(zhì):
＊
鎢鋼。
＊
H.S.S Die。
可替客戶訂作特殊模具及閃電型模具。
|
NO.1 DRILL POINT DIES |
|||||
|
DP DIE CODE |
DRILL DIA. (Dψ) |
FLUTE LENGTH(L) |
DRILL LENGTH(C) |
MAX MATERIAL THICKNESS |
DP DIE STYLE |
|
L1-22 |
2.2 |
2.7 |
1.7 |
1.0 |
STYLE I STYLE II |
|
-23 |
2.3 |
||||
|
L1-27 |
2.7 |
3.4 |
2.4 |
1.5 |
|
|
-28 |
2.8 |
||||
|
-29 |
2.9 |
||||
|
-30 |
3.0 |
||||
|
-31 |
3.1 |
||||
|
L1-32 |
3.2 |
4.2 |
3.2 |
2.1 |
|
|
-33 |
3.3 |
||||
|
-34 |
3.4 |
||||
|
-35 |
3.5 |
||||
|
-36 |
3.6 |
||||
|
L1-37 |
3.7 |
5.0 |
4.0 |
2.8 |
|
|
-38 |
3.8 |
||||
|
-39 |
3.9 |
||||
|
-40 |
4.0 |
||||
|
-41 |
4.1 |
||||
|
L1-43 |
4.3 |
6.0 |
5.0 |
3.6 |
STYLE II |
|
-45 |
4.5 |
||||
|
-47 |
4.7 |
||||
|
L1-49 |
4.9 |
7.2 |
6.2 |
4.5 |
|
|
-51 |
5.1 |
||||
|
-53 |
5.3 |
||||
|
-55 |
5.5 |
||||
|
-57 |
5.7 |
||||
|
NO.2 DRILL POINT DIES |
|||||
|
DP DIE CODE |
DRILL DIA. (Dψ) |
FLUTE LENGTH(L) |
DRILL LENGTH(C) |
MAX MATERIAL THICKNESS |
DP DIE STYLE |
|
L2-22 |
2.2 |
3.2 |
2.2 |
1.5 |
STYLE I STYLE II |
|
-23 |
2.3 |
||||
|
L2-27 |
2.7 |
4.0 |
3.0 |
2.1 |
|
|
-28 ○ |
2.8 |
||||
|
-29 |
2.9 |
||||
|
-30 |
3.0 |
||||
|
-31 ○ |
3.1 |
||||
|
L2-32 |
3.2 |
4.9 |
3.9 |
2.8 |
|
|
-33 |
3.3 |
||||
|
-34 ○ |
3.4 |
||||
|
-35 |
3.5 |
||||
|
-36 |
3.6 |
||||
|
L2-37 |
3.7 |
5.8 |
4.8 |
3.6 |
|
|
-38 |
3.8 |
||||
|
-39 ○ |
3.9 |
||||
|
-40 |
4.0 |
||||
|
-41 ○ |
4.1 |
||||
|
L2-43 |
4.3 |
6.9 |
5.9 |
4.5 |
STYLE II |
|
-45 ○ |
4.5 |
||||
|
-47 ○ |
4.7 |
||||
|
L2-49 ○ |
4.9 |
8.0 |
7.0 |
5.3 |
|
|
-51 |
5.1 |
||||
|
-53 ○ |
5.3 |
||||
|
-55 ○ |
5.5 |
||||
|
-57 |
5.7 |
||||
|
NO.3 DRILL POINT DIES |
|||||
|
DP DIE CODE |
DRILL DIA. (Dψ) |
FLUTE LENGTH(L) |
DRILL LENGTH(C) |
MAX MATERIAL THICKNESS |
DP DIE STYLE |
|
L3-27 |
2.7 |
4.7 |
3.7 |
2.8 |
STYLE I STYLE II |
|
-28 ○ |
2.8 |
||||
|
-29 |
2.9 |
||||
|
-30 |
3.0 |
||||
|
-31 ○ |
3.1 |
||||
|
L3-32 |
3.2 |
5.7 |
4.7 |
3.6 |
|
|
-33 |
3.3 |
||||
|
-34 ○ |
3.4 |
||||
|
-35 |
3.5 |
||||
|
-36 |
3.6 |
||||
|
L3-37 |
3.7 |
6.7 |
5.7 |
4.5 |
|
|
-38 |
3.8 |
||||
|
-39 ○ |
3.9 |
||||
|
-40 |
4.0 |
||||
|
-41 ○ |
4.1 |
||||
|
L3-43 |
4.3 |
7.7 |
6.7 |
5.3 |
STYLE II |
|
-45 ○ |
4.5 |
||||
|
-47 ○ |
4.7 |
||||
|
L3-49 ○ |
4.9 |
9.0 |
8.0 |
6.3 |
|
|
-51 |
5.1 |
||||
|
-53 ○ |
5.3 |
||||
|
-55 ○ |
5.5 |
||||
|
-57 |
5.7 |
||||
注：○符號表示現(xiàn)貨供應
|
NO.4 DRILL POINT DIES |
|||||
|
DP DIE CODE |
DRILL DIA. (Dψ) |
FLUTE LENGTH(L) |
DRILL LENGTH(C) |
MAX MATERIAL THICKNESS |
DP DIE STYLE |
|
L4-43 |
4.3 |
8.7 |
7.7 |
6.3 |
STYLE II |
|
-45 |
4.5 |
||||
|
-47 |
4.7 |
||||
|
L4-49 |
4.9 |
11.7 |
10.7 |
9.0 |
STYLE III |
|
-51 |
5.1 |
||||
|
-53 |
5.3 |
||||
|
-55 |
5.5 |
||||
|
-57 |
5.7 |
||||
|
NO.5 DRILL POINT DIES |
|||||
|
DP DIE CODE |
DRILL DIA. (Dψ) |
FLUTE LENGTH(L) |
DRILL LENGTH(C) |
MAX MATERIAL THICKNESS |
DP DIE STYLE |
|
L5-49 |
4.9 |
14.7 |
13.7 |
12.0 |
STYLE III |
|
-51 |
5.1 |
||||
|
-53 |
5.3 |
||||
|
-55 |
5.5 |
||||
|
-57 |
5.7 |
||||
|
NO.6 DRILL POINT DIES |
|||||
|
DP DIE CODE |
DRILL DIA. (Dψ) |
FLUTE LENGTH(L) |
DRILL LENGTH(C) |
MAX MATERIAL THICKNESS |
DP DIE STYLE |
|
L6-49 |
4.9 |
17.7 |
16.7 |
15.0 |
STYLE III |
|
-51 |
5.1 |
||||
|
-53 |
5.3 |
||||
|
-55 |
5.5 |
||||
|
-57 |
5.7 |
||||
|

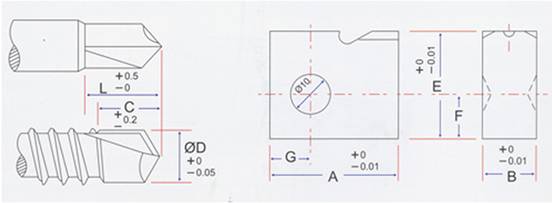

DIE STYLE |
A |
B |
E |
F |
G |
|
STYLE I |
31.75 |
12.70 |
25.40 |
11.4 |
10.7 |
|
STYLE II |
31.75 |
20.00 |
32.00 |
18.0 |
10.7 |
|
STYLE III |
45.00 |
30.00 |
32. |
16.0 |
16.0 |
